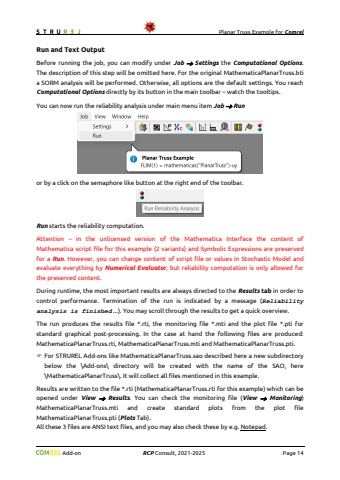

Planar Truss Examplefor ComrelAdd-onRCPConsult, 2021-2025Page 14Run and Text OutputBefore running the job,you can modify under Job %u2192Settingsthe Computational Options. The description of this step will be omitted here. For the original MathematicaPlanarTruss.bti a SORM analysis will be performed. Otherwise,all options are the default settings. You reach Computational Optionsdirectly by its button in the main toolbar watch the tooltips.You can now run the reliability analysis under main menu item Job %u2192Run or by a click on the semaphore like button at the right end of the toolbar. Runstarts the reliability computation.Attention %u2013in the unlicensed version of the MathematicaInterface the content of Mathematicascript filefor this example(2 variants)and SymbolicExpressionsarepreservedfor aRun. However, you can change contentof script file or values in Stochastic Modeland evaluate everything by Numerical Evaluator,but reliability computation is only allowed forthepreservedcontent.During runtime, the most important results are always directed to the Results tabin order to control performance. Termination of the run is indicated by a message (Reliability analysis is finished...). You may scroll through the results to get a quick overview.Therun produces the results file *.rti, the monitoring file *.mti and the plotfile *.pti forstandard graphical post-processing. In the case at hand the following files are produced: MathematicaPlanarTruss.rti, MathematicaPlanarTruss.mti and MathematicaPlanarTruss.pti.%uf046For STRURELAdd-ons like MathematicaPlanarTruss.sao described here a new subdirectory below the \\Add-ons\\directory will be created with the name of the SAO, here \\MathematicaPlanarTruss\\.It will collect all files mentioned in this example.Results are written to the file *.rti (MathematicaPlanarTruss.rti for this example) which can be opened under View %u2192Results.You can check themonitoring file (View %u2192Monitoring) MathematicaPlanarTruss.mti and create standard plots from the plotfile MathematicaPlanarTruss.pti (PlotsTab).All these 3 files are ANSI text files, and you may also check these by e.g. Notepad.
