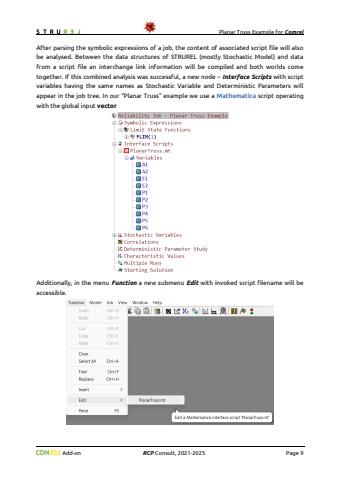

Planar Truss Examplefor ComrelAdd-onRCPConsult, 2021-2025Page 9After parsing the symbolic expressions of a job, the content of associated script file will also be analysed. Between the data structures of STRUREL (mostly Stochastic Model) and data from a script file an interchange link information will be compiled and both worlds come together. If this combined analysis was successful, a new node %u2013Interface Scriptswith script variables having the same names as Stochastic Variable and Deterministic Parameters will appear in the job tree. In our %u201cPlanar Truss%u201d example we use a Mathematicascript operating with the global input vectorAdditionally, in the menu Function a new submenu Edit with invokedscript filename will be accessible.
