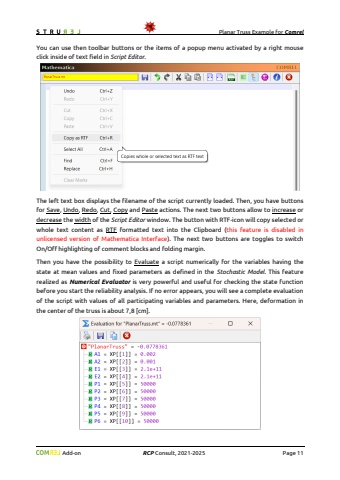

Planar Truss Examplefor ComrelAdd-onRCPConsult, 2021-2025Page 11You can use then toolbar buttons or the items of a popup menu activated by a right mouse click inside of text field in Script Editor. The left text box displays the filename of the script currently loaded. Then, you have buttons for Save, Undo, Redo, Cut, Copyand Pasteactions. The next two buttons allow to increaseor decreasethe widthof the Script Editorwindow. The button with RTF-icon will copy selected or whole text content as RTFformatted text into the Clipboard (this feature is disabled in unlicensed versionof MathematicaInterface). The next two buttons are toggles to switch On/Off highlighting of comment blocks and folding margin.Then you have the possibility to Evaluatea script numerically for the variables having the state at mean values and fixed parameters as defined in the Stochastic Model. This feature realized as Numerical Evaluatoris very powerful and useful for checking the state function before you start the reliability analysis. If no error appears, you will see a complete evaluation of the script with values of all participating variables and parameters. Here, deformation in the center of the truss is about 7,8 [cm].
