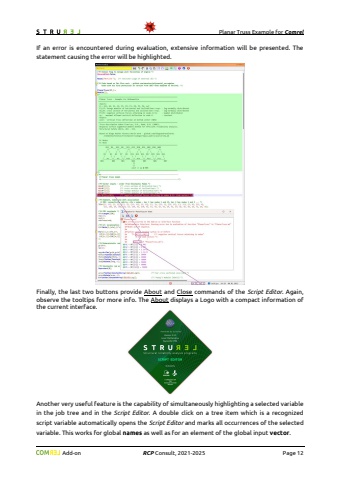

Planar Truss Examplefor ComrelAdd-onRCPConsult, 2021-2025Page 12If an error is encountered during evaluation, extensive information will be presented. The statement causing the error will be highlighted.Finally, the last two buttons provide Aboutand Closecommands of the Script Editor. Again, observe the tooltips for more info. The Aboutdisplays a Logo with a compact information of the current interface.Another very useful feature is the capability of simultaneously highlighting a selected variable in the job tree and in the Script Editor. A double click on a tree item which is a recognized script variable automatically opens the Script Editorand marks all occurrencesofthe selected variable. This works for global namesas well as for an element of the global input vector.
