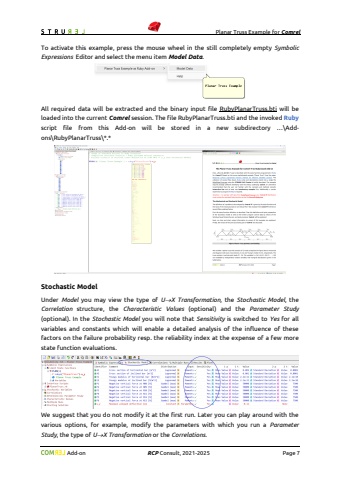

Planar Truss Example for Comrel Add-on RCP Consult, 2021-2025 Page 7To activate this example, press the mouse wheel in the still completely empty Symbolic Expressions Editor and select the menu item Model Data.All required data will be extracted and the binary input file RubyPlanarTruss.bti will be loaded into the current Comrel session. The file RubyPlanarTruss.bti and the invoked Rubyscript file from this Add-on will be stored in a new subdirectory %u2026\\Addons\\RubyPlanarTruss\\*.*Stochastic ModelUnder Model you may view the type of U%u2192X Transformation, the Stochastic Model, the Correlation structure, the Characteristic Values (optional) and the Parameter Study(optional). In the Stochastic Model you will note that Sensitivity is switched to Yes for all variables and constants which will enable a detailed analysis of the influence of these factors on the failure probability resp. the reliability index at the expense of a few more state function evaluations. We suggest that you do not modify it at the first run. Later you can play around with the various options, for example, modify the parameters with which you run a Parameter Study, the type of U%u2192X Transformation or the Correlations.
