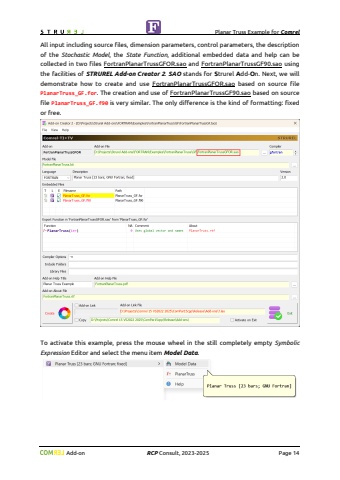

Planar Truss Example for Comrel Add-on RCP Consult, 2023-2025 Page 14All input including source files, dimension parameters, control parameters, the description of the Stochastic Model, the State Function, additional embedded data and help can becollected in two files FortranPlanarTrussGFOR.sao and FortranPlanarTrussGF90.sao using the facilities of STRUREL Add-on Creator 2. SAO stands for Strurel Add-On. Next, we willdemonstrate how to create and use FortranPlanarTrussGFOR.sao based on source file PlanarTruss_GF.for. The creation and use of FortranPlanarTrussGF90.sao based on source file PlanarTruss_GF.f90 is very similar. The only difference is the kind of formatting: fixed or free.To activate this example, press the mouse wheel in the still completely empty Symbolic Expression Editor and select the menu item Model Data.
